Deluxe 5 String
Bass Guitar Necks


Deluxe 5 String Bass Guitar Necks

Standard Peghead
Replacement Neck
for Deluxe 5 14mm
holes for GB7
Standard 4+1
Peghead Replacement
Neck for Deluxe 5 17mm holes for
BML Lite
Tele® Peghead
Replacement Neck
for Deluxe 5 14mm
holes for GB7
Warmoth 13°
Angled Peghead with
Deluxe 5 Compatible
heel dimensions
14mm holes for GB7




Asymmetric back shape for maximum hand comfort Shape exaggerated for effect.

Warmoth Deluxe 5 Necks feature our standard SuperBass construction for rock solid stability and tone. The back is shaped asymmetrically to keep perceived neck bulk down and create a thinner, fast feeling neck. The bass side of the neck is thicker, with the treble side being thinner. Your thumb will find easy reference as your hand glides up and down the neck -- a very comfortable neck to play.

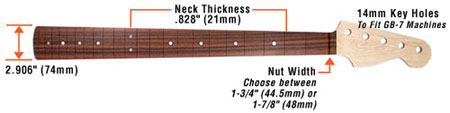

Basic Neck Dimensions

Please carefully compare these specifications with your body since Fender® Deluxe 5, 22 fret Bass standards vary from year to year and model to model.



Standard Deluxe 5 String Bass Guitar Neck Features
  • 34" scale with 22 frets
  • 10" radius fretboard - 1/4" thick
  • Triple reinforced truss rod system
  • 5-in-line pegheads have 14mm machine holes for Gotoh GB7 Tuners
  • 4+1 peghead has 17mm machine holes for Schaller BML Lite Tuners
  • Asymmetric back shape

Neck Builder





Deluxe 5 Standard, Deluxe 5 4+1, Deluxe 5 Tele®, Deluxe 5 Paddle

Pricing Table

Fingerboard Woods



Neck Woods		MapleIndian RosewoodPau FerroBubingaGoncalo AlvesWengePurpleheartBloodwoodEbonyZiricoteEbony (Black)
Maple$180$200$210$217$245$265$310
Birdseye Maple$216$236$246$253$281$301$346
Roasted Maple$220$240$250$257$285$305$350
Flame Maple$280$290$297$325$345$390
Padouk$280$290$297$325$345$390
Purpleheart$280$290$297$325$345$390
Wenge$290$297$325$345$390
Bubinga$290$297$325$345$390
Goncalo Alves$290$297$325$345$390
Bloodwood$280$290$297$325$345$390
Indian Rosewood$390$397$425$445$490
3A Birdseye Maple$380$400$410$417$445$465$510



Deluxe 5 13° Warmoth Head

Pricing Table

Fingerboard Woods



Neck Woods		MapleIndian RosewoodPau FerroBubingaGoncalo AlvesWengePurpleheartBloodwoodEbonyZiricoteEbony (Black)
Maple$205$225$235$242$270$290$335
Birdseye Maple$241$261$271$278$306$326$371
Flame Maple$285$305$315$322$350$370$415
Padouk$305$315$322$350$370$415
Purpleheart$305$315$322$350$370$415
Wenge$305$315$322$350$370$415
Bubinga$315$322$350$370$415
Indian Rosewood$405$415$422$450$470$515
3A Birdseye Maple$405$425$435$442$470$490$535

Just add the prices shown below to the ones in the table above to pick the actual piece of wood used for your fingerboard! Make sure to include the fingerboard number with your order.

Select Your Fingerboard Wood

wood type
FB872 +$95
Birdseye Maple

wood type
FB1838 +$95
Birdseye Maple

wood type
FB1797 +$95
Flame Maple

wood type
FB2148 +$65
Ziricote

wood type
FB1467 +$45
Bloodwood

  • The grain pattern and color will change as the fingerboard is sanded and finished. You should expect some variation in appearance from the picture shown.
  • Warmoth's production managers have discretion to choose the way the fingerboard is oriented on the body wood for the best appearance and structural integrity.
  • If while in production the product is found to be substandard, we will not be able to continue with the piece you have chosen.
  • The charge for selecting a one-of-a-kind fingerboard is non-refundable for order returns, changes, or cancellations.
