Hybrid Tele® Guitar Pickguard
Compatibility Information:
This pickguard works with the Warmoth Hybrid Tele® body only. It does not match the routing scheme of any Fender® body.
A P-90 Bridge Pickup will not fit when Volume 1 is used.
Will It Fit? - Print Out This Full Size PDF
For the best results, you can print out this full size PDF for comparisons of mounting hole and pickup locations as well as perimeter measurements. DO NOT SELECT "Fit to Page."
Hybrid Tele® Guitar Pickguard
Bridge Routing Options
|
|
Routing for the Floyd Rose Bridge
Routing for the larger Floyd Rose tremolo is optional.
This moves the location of hole # 8 about 7/16" to the side.
No Extra Cost!
|
SRV Countersunk Pickup and Switch Mounting Holes
|
|
This option features "countersinking" on the pickup and switch mounting holes. Please specify "SRV Style when ordering. Not available on the thinner .060" thickness pickguards. Requires Oval head screws such as our S13 style. This option is no extra charge!
|
Hybrid Tele® Guitar Pickguard
Control Routing Options
|
Above are 3 popular examples of pot and switch combinations. YOU CHOOSE
your configuration. We can cut any, all, or none of the standard pot
and switch holes. Simply tell us your preference.
The diagram above shows stndard locations for controls 1-4.
Special D-Long Volume Hole Placement Option
This option moves the Volume hole (Cntrl 1) further away from the pickup and forward from its traditional position. This custom placement is $15 extra.
|

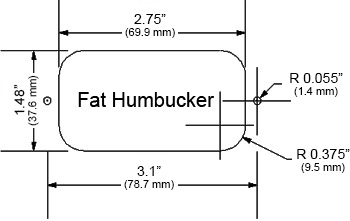

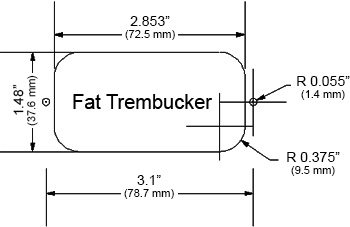

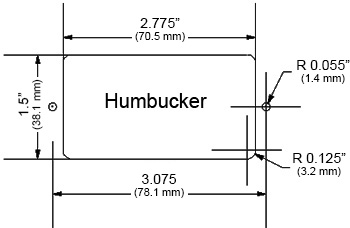

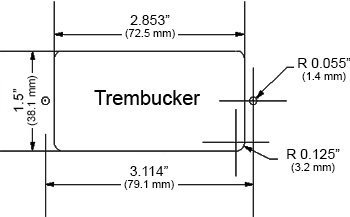

Below are the humbucker rout dimensions we offer. Please be
sure of the one that is correct for your brand or style of pickup.
